Reusable Stainless Steel Knotted wire Rope Mesh Netting for zoo Safety Net
Quick details of Knotted wire Rope Mesh Netting :
Knotted Stainless Steel Wire Mesh Netting is also called stainless steel inter-woven netting
or Handwoven Rope Mesh ,each warp wire rope crosses alternately above and below each
weft wire rope. Warp and weft wire ropes generally have the same diameter, using aspecialized
weaving technique. with lightweight, high strength and durable design of the rope netting allows
for a workable lifetime of more than 30 years. widely used as zoo mesh, zoo netting
- Type: woven type
- Material: stainless steel
- Rope wire diameter: 1.0mm to 4.0mm etc.
- Rope construction: 7 x7 and 7 x 19
Specification of Knotted wire Rope Mesh Netting:
| Cable Diameter | Mesh Opening Size(W×H) |
| inch | mm | inch | mm |
| 1/8 | 3.2 | 2 x3.46 | 51 x88.3 |
| 3/32 | 2.4 | 2x3.46 | 51 x 88.3 |
| 5/64 | 2.0 | 2.4x 4.16 | 60 x 104 |
| 5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 |
| 5/64 | 2.0 | 1-1/2 x 2.6 | 38 x 65.8 |
| 1/16 | 1.6 | 2x 3.46 | 51 x 88.3 |
| 1/16 | 1.6 | 1-1/2 x 2.6 | 38 x 65.8 |
| 1/16 | 1.6 | 1.2x2.08 | 30 x 52 |
| 1/16 | 1.6 | 1 x 1.73 | 25.4 x 44 |
| 3/64 | 1.2 | 1-1/2x2.6 | 38 x 65.8 |
| 3/64 | 1.2 | 1.2 x 2.08 | 30 x 52 |
| 3/64 | 1.2 | 1 x 1.73 | 25.4 x 44 |
| 3/64 | 1.2 | 4/5 x 1.39 | 20 x 34.6 |

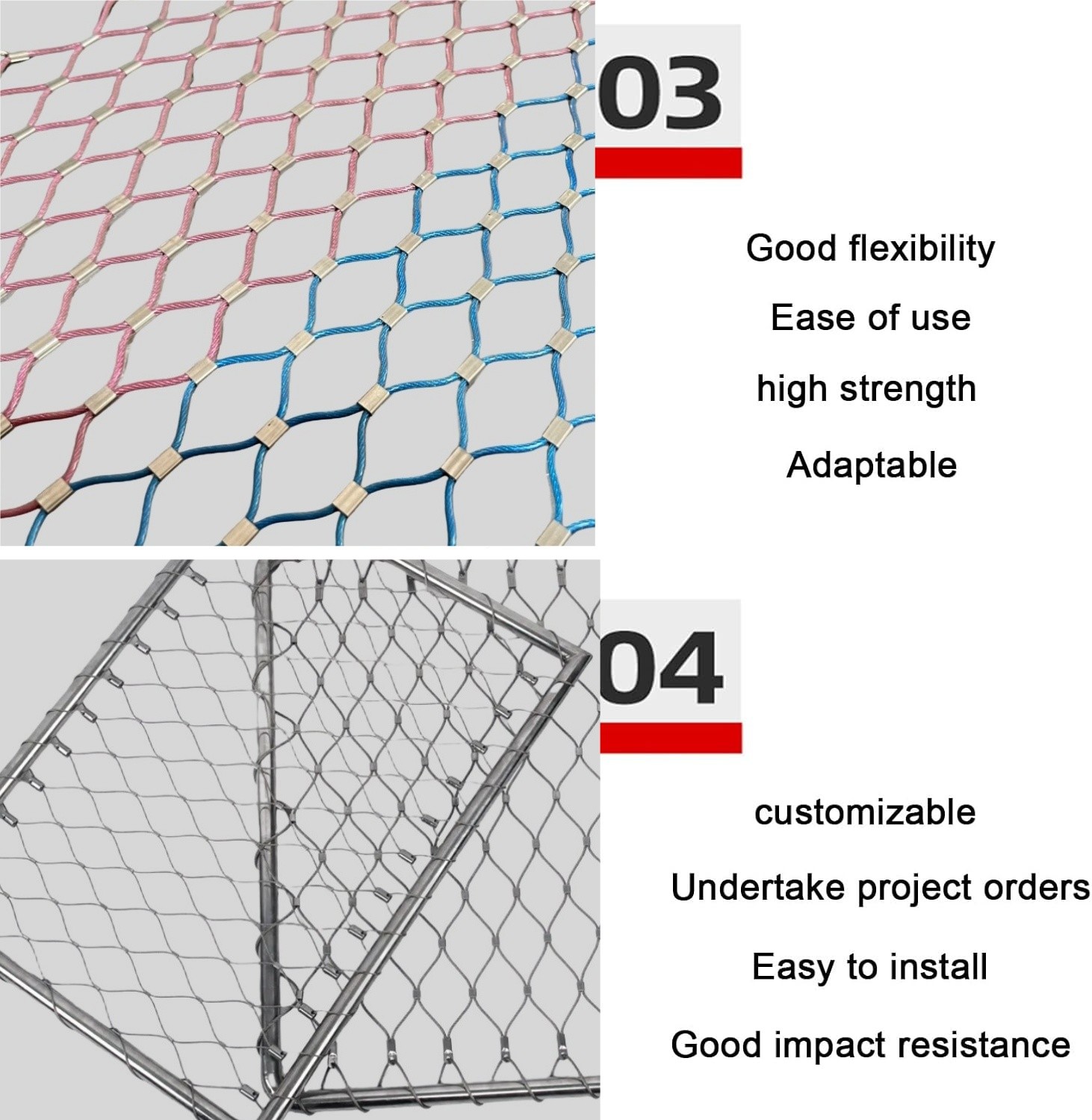

Pic of 304 wire Rope Mesh Netting
Accessories of Knotted wire Rope Mesh Netting :
We also provide various parts, including stainless steel wire rope, buckle, sleeve, cable eye ends,
suspension rope clamps, thread ends, rod articulation and wall mount. As shown in the following figure:
Application of Knotted wire Rope Mesh Netting :
Transparent and flexible stainless steel rope mesh system is a professional solution for protection
and safety applications, consisting of stainless steel wire ropes and steel structural supports. This
system can be configured in a variety of ways by using different wire rope diameters and mesh
aperture sizes to meet the needs of different projects. It is often used in a wide range of applications
such as buildings, bridges and helicopter landing platforms to provide safety and protection measures.
Package of Knotted wire Rope Mesh Netting :
-
The rope mesh without frame would packed in rolls with plastic film, then put into wooden case
-
The rope mesh with frame would be fastene on pallets.
