7 × 19 Construction Safety Stainless Steel Rope Net Size Customized

Anping County Huihao Wire Mesh Manufacture Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

7 × 19 Construction Safety Stainless Steel Rope Net Size Customized

  • 1
  • 2

Brand Name : HUIHAO CUSTOM

Model Number : Stainless Steel Rope Mesh

Certification : ISO9001-2015

Place of Origin : CHINA

MOQ : 10 square meters

Price : USD8-26/M2

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 30000 square meters per 10 days

Delivery Time : within 7 work days

Packaging Details : rolls with plastic film, then put into wooden case

Name : Stainless Steel Rope Mesh

Material : Stainless Steel 304/316/316L

Type : Knotted And Ferrule Type

Cable Diameter : 1-4mm

Hope Type : Diamond

Cable Structure : 7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm)

Mesh Orientation : Horizontal , Vertical

Diamond size : 20MM-200MM

Frame System : Customized according to your need

Application : zoo mesh, animal enclosure, bird aviary, handrail infills, anti-falling safety net, garden fence

Contact Now

Construction Safety Net Used Stainless Steel Rope Mesh Size Customized

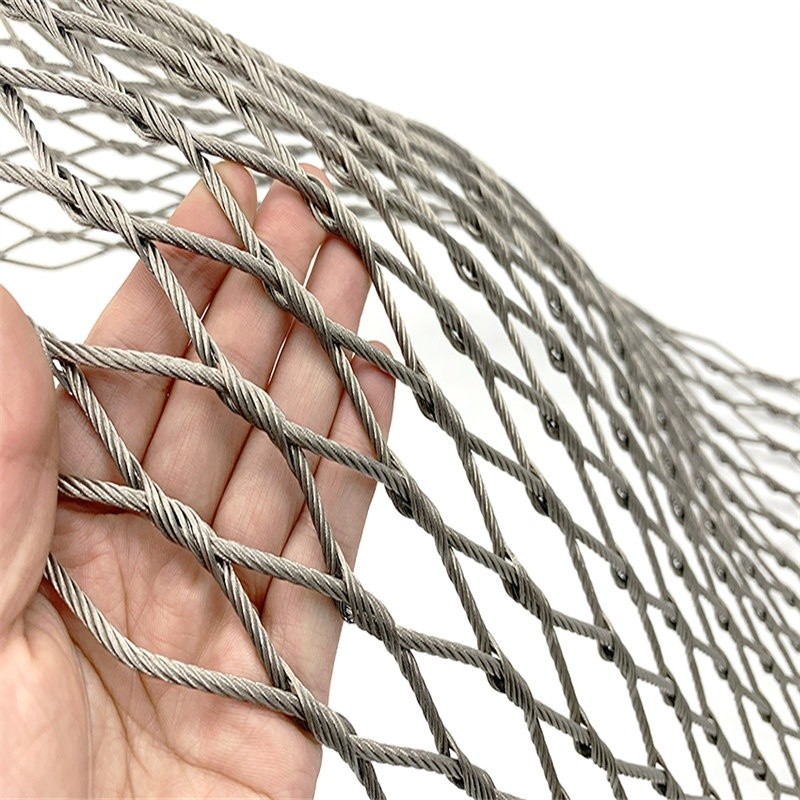

Description Of Stainless Steel Rope Mesh:

Made from high quality stainless steel wire ropes, stainless steel rope mesh is lightweight, flexible, transparent, durable, solid, and long-lasting.

All stainless steel rope meshes are manufactured to ISO 9001 standards.

Stainless steel rope mesh has been widely used as balustrade infill system, zoo enclosures, tensile facade, safety netting and green wall systems in interior and exterior applications.

Material: stainless steel 304, 304L, 316, 316L.
Ferrule material: tinned copper, nickel plated copper, stainless steel.
Surface treatment: silver or black oxide finish.
Construction of wire cable: 7 × 7, 7 × 19.
Cable diameter: 1.0–5.0 mm.
Mesh opening sizes: 20–200 mm.
Mesh opening angles: 20 , 30 , 60 , 70 , 75 .
Connection: ferrule or knotted.
Certification: certified to EN1263-1 for static and dynamic load capacity

Specification Of Stainless Steel Rope Mesh:

Type

Knotted cable mesh

Ferrule cable mesh


7 × 19 Construction Safety Stainless Steel Rope Net Size Customized

7 × 19 Construction Safety Stainless Steel Rope Net Size Customized

Feature Quality material, High flexibility, Anti-corrosion,Longevity, Cost effectiveness, Easy
Advantages 1.Never rust, strong weather resistance, and a service life of up to 30 years
2.Soft, flexible and elastic
3.Lightweight and stable
4.Good perspective
5.Ecological, healthy and environmentally friendly
6.Beautiful appearance

Combination

Inter-woven

Seamless ferrule

Hole pattern

90 degree diamond hole

60 degree diamond hole

Material

SS304, 316, 316L, etc

Diamond size 20 ~ 200 mm

Cable diameter

1 ~ 4 mm

Cable structure

7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm)

Cable structure 7 × 19 Construction Safety Stainless Steel Rope Net Size Customized

Stainless Steel Rope Mesh (Ferrule Type), 7 × 7 Construction Wire Rope

Mesh Aperture
Width × Height (mm)

Wire Rope Diameter
(mm)

Minimum Breaking Load
(kN)

25x40

1.0

0.6

1.6

1.5

30x50

1.0

0.6

1.6

1.5

35x60

1.0

0.6

1.6

1.5

2.0

2.5

40x70

1.0

0.6

1.6

1.5

2.0

2.5

50x88

1.0

0.6

1.6

1.5

2.0

2.5

3.0

5.7

4.0

10.1

60x105; 70x120
80x140; 100x175
120x210; 160x275
180x310; 200x345

1.0

0.6

1.6

1.5

2.0

2.5

3.0

5.7

4.0

10.1

5.0

15.9

Stainless Steel Rope Mesh (Knotted), 7 × 7 Construction Wire Rope

Mesh Aperture
Width × Height (mm)

Wire Rope Diameter
(mm)

Minimum Breaking Load
(kN)

25x25

1.2

0.8

1.6

1.5

30x30

1.2

0.8

1.6

1.5

40x40

1.2

0.8

1.6

1.5

2

2.5

50x50

1.2

0.8

1.6

1.5

2

2.5

60x60

1.2

0.8

1.6

1.5

2

2.5

2.4

3.4

3

5.7

75x75; 90x90
100x100;120x120

1.2

0.8

1.6

1.5

2

2.5

2.4

3.4

3

5.7

4

10.1

Stainless Steel Rope Mesh, 7 × 19 Construction Wire Rope

Mesh Aperture
Width × Height (mm)

Wire Rope Diameter
(mm)

Minimum Breaking Load
(kN)

150x260

3.2

7.38

120x208

3.2

7.38

100x173

3.2

7.38

90x156

3.2

7.38

Application Of Stainless Steel Wire Rope Mesh:

Balustrades,
Safety Nets,
Closure Nets,
Facades,
Greenery Installations,
Decorative Designs,
7 × 19 Construction Safety Stainless Steel Rope Net Size Customized

Package & Delivery Of Stainless Steel Rope Mesh:

1. Rolls With Plastic Film, Then Put Into Wooden Case

2. Stainless Steel Cable mesh With Frame, Then put Into Wooden Case

3. As your requirement

7 × 19 Construction Safety Stainless Steel Rope Net Size Customized
